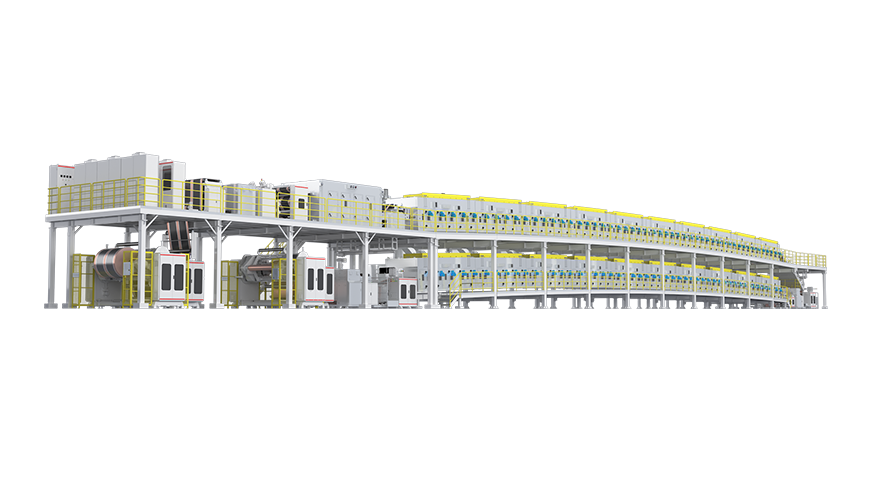

Double-layer Coating Machine
This battery coating machine ensures stable, continuous output throughout the lithium ion battery coating machine process. Designed for high-precision battery electrode coating, it provides an efficient, stable solution from a leading battery coating machine manufacturer to optimize large-scale production.
Roller Surface Width:
Max.1600mm
Coating Speed:
Max.120m/min
[ 01 ]

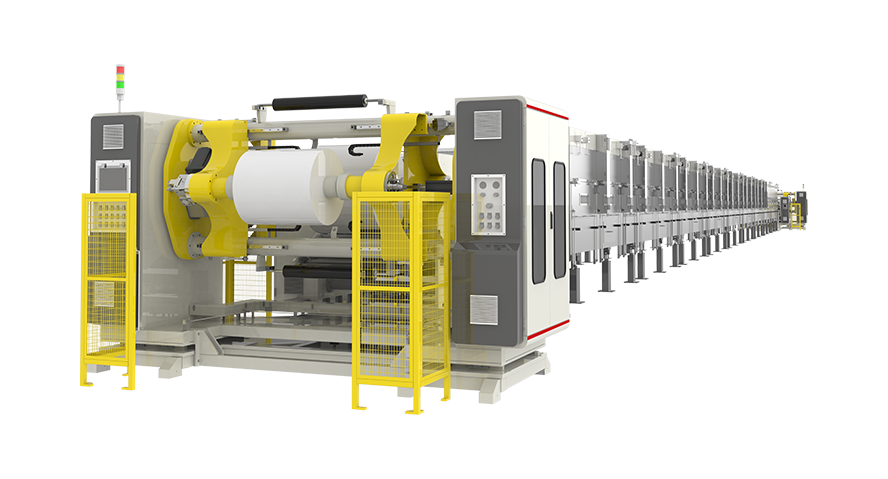

Single-layer Coating Machine
This battery coating machine is ideal for lithium ion battery coating across both power and digital cell applications. As a premier battery coating machine manufacturer, we ensure this equipment delivers precise battery electrode coating for high-performance production.
Coating Width:
Max.1350mm
Coating Speed:
Max.120m/min
[ 02 ]

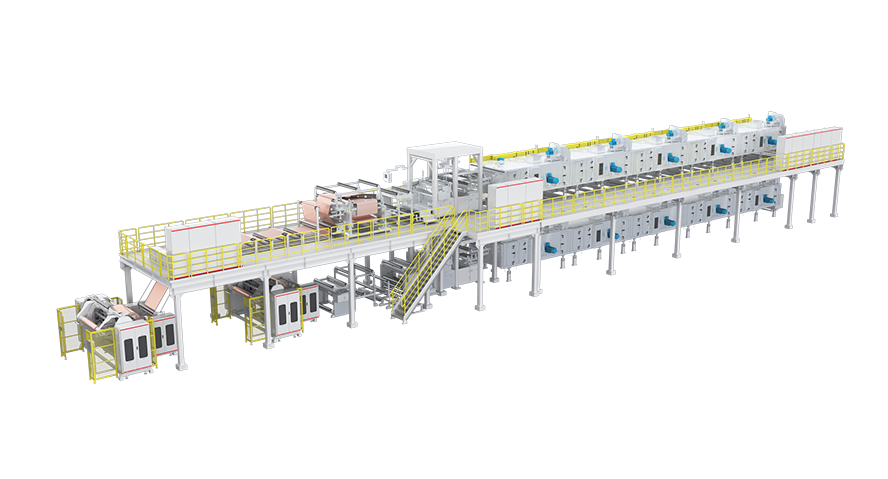

Double-layer Super-E Coating Machine
This battery coating machine redefines efficiency by merging an A/B side design with innovative lithium ion battery coating technology. Beyond mere stability, the system slashes overhead by shrinking factory footprints and labor needs, allowing this battery electrode coating solution to champion energy-saving production. As a top-tier battery coating machine manufacturer, we’ve engineered this unit to transform high-quality output into a sustainable competitive advantage.
Roller surface width:
Max.1800mm
Coating Speed:
Max.120m/min
[ 03 ]

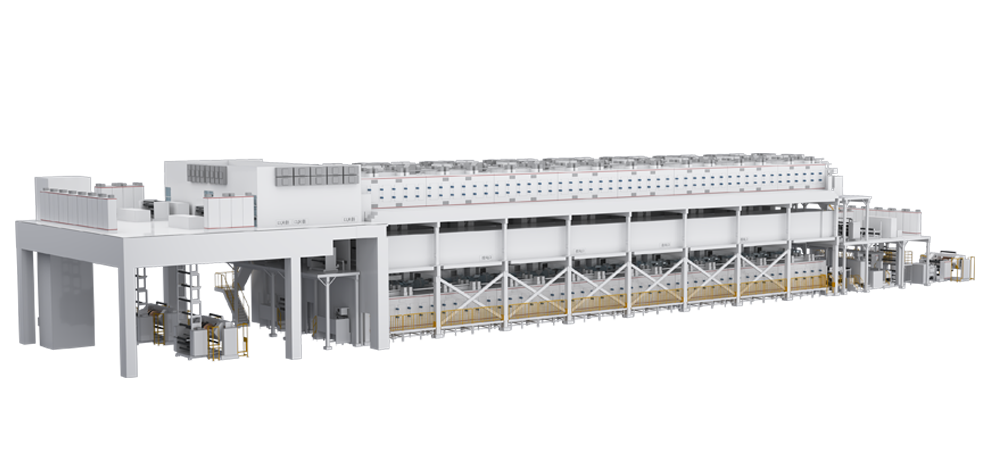

Super S-Type Coater
The Super S-Type Coater evolves from the Super-E prototype, integrating core standardized units such as the Super-E A-side coating machine, unwinding & rewinding units, oven, and traction unit, inheriting the Super-E’s exceptional thermal efficiency and energy-saving performance. It stands as a pinnacle of precision engineering from a leading battery coating machine manufacturer, delivering the reliability required for modern electrode production.
Roller surface width:
1800mm
Coating Speed:
Max.120m/min
[ 04 ]

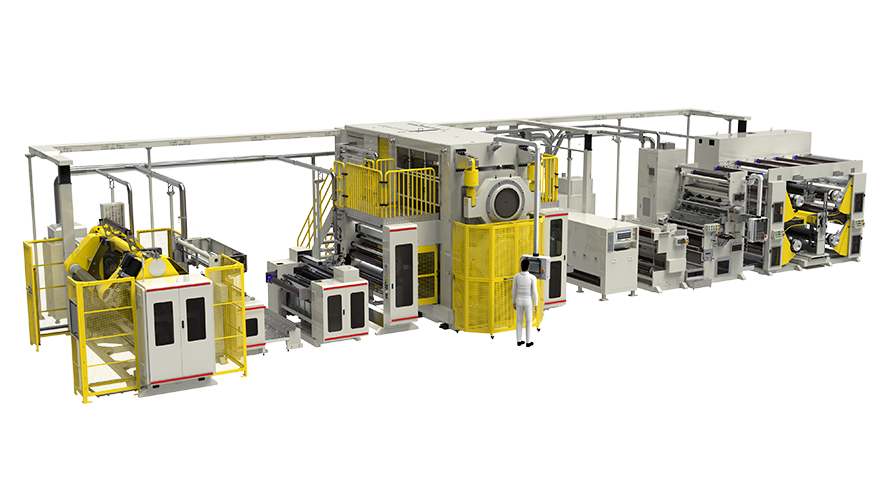

Calendering and Slitting Integrated Machine
This battery calendering machine integrates automatic winding with high-speed roller cleaning, pushing production limits to 120m/min. By seamlessly combining calendering battery manufacturing and precision electrode slitting within a 1500mm width, it delivers the high-speed output global developers demand. This all-in-one electrode slitting machine ensures every battery electrode coating is processed with industrial-grade accuracy and efficiency.
Roller surface width：
Max.1.8m
Production speed:
120m/min
[ 05 ]

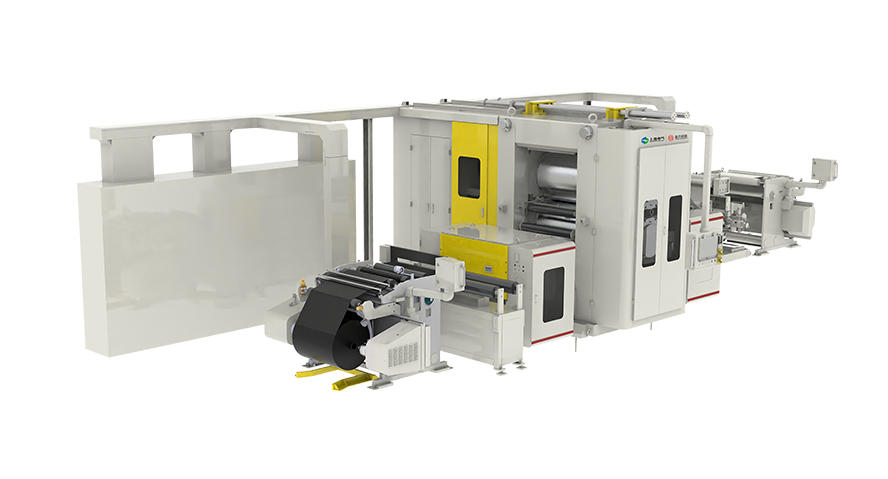

Gap Coating and Calendering Machine
This battery calendering machine excels in gap production, supporting electrode widths up to 800mm with high-precision thickness accuracy of ±1.5μm. By streamlining the calendering battery manufacturing process, it ensures the uniform consistency required for high-quality battery electrode coating. This solution optimizes the transition between the battery coating machine stage and subsequent processing, delivering the reliability expected from a leading battery coating machine manufacturer.
Roller Width:
Max.900mm
Machine Speed:
Max.70m/min
[ 06 ]

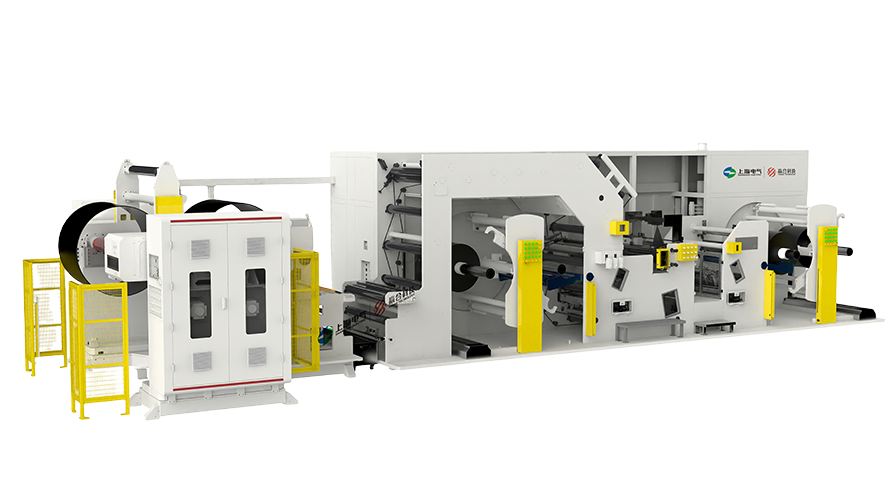

Slitting Machine
This high-speed electrode slitting machine supports roller widths up to 1600mm and speeds of 150m/min. Engineered for precision, it delivers a slitting accuracy of ±0.3mm and minimal burrs, ensuring a seamless transition from the battery coating machine stage. This robust battery slitting machine solution is designed for consistent electrode slitting in large-scale manufacturing.
Slitting Width Accuracy:
±0.3mm
Machine Speed(Standard Slitting):
Max.50m/min
[ 07 ]

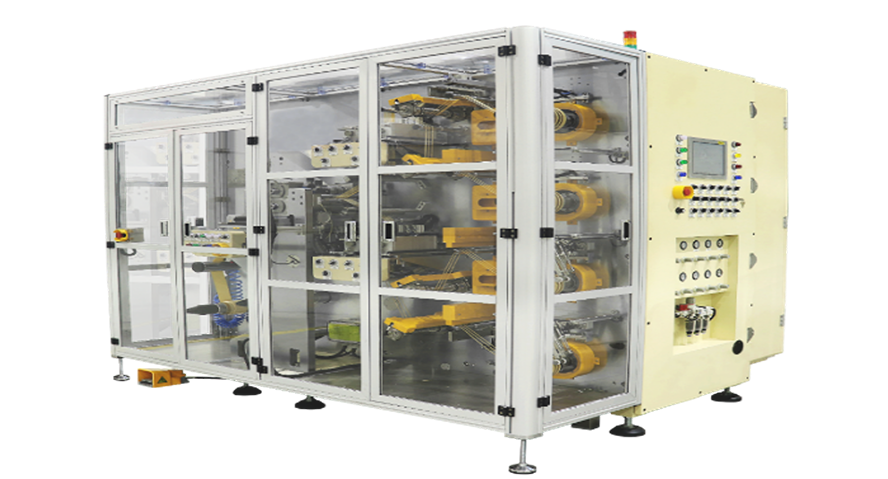

Bluetooth Slitting Machine
Slitting Speed:
Max.15m/min
Correction Accuracy:
±0.1mm
[ 08 ]
