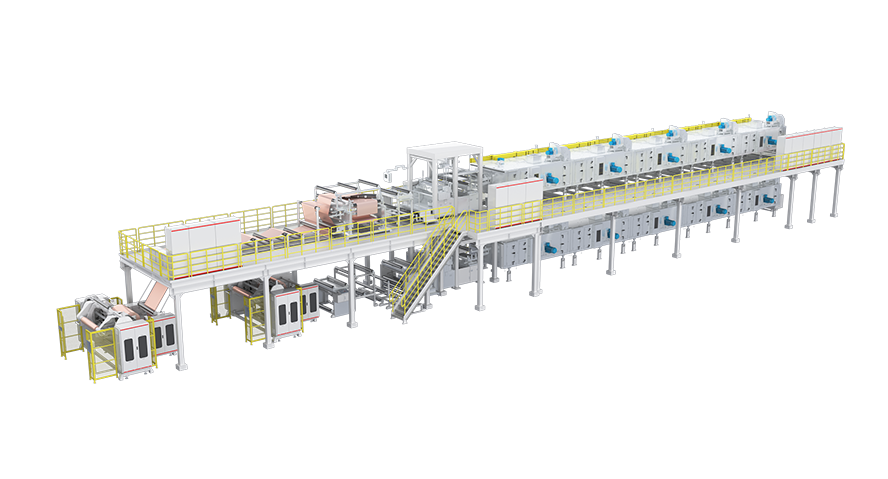

Double-Layer Super-E Coating Machine
Roller surface width:
Max.1800mm
Coating Speed:
Max.120m/min
The new E-shaped electrode layout allows the electrode to undergo two drying processes within a single oven. Compared to traditional coating machines, this reduces the length by over 35%, doubles the oven efficiency, reduces the equipment footprint by 35%, and saves over 35% in energy consumption. It also decreases the battery coating machine footprint, as well as the lithium battery manufacturing equipment floor space by 8%. Additionally, maintenance personnel requirements are reduced by 30%.
Combined with the A/B side coating design, the outstanding integration and innovative design enable efficient, high-quality, and stable production. This reduces labor, factory space, and overall production costs, while effectively promoting energy-saving and emission-reduction in lithium ion battery assembly equipment. These features are a testament to the high-performance capabilities of our battery coating machine manufacturer, offering a reliable source of battery coating machine wholesale solutions.
Equipment Parameters
| Item | 850Series | 1000Series | 1400Series | 1600Series | 1800Series |
|---|---|---|---|---|---|
Roller Width（mm） | 850 | 1000 | 1400 | 1600 | 1800 |
| Coating Width（mm） | Max.700 | Max.800 | Max.120 | Max.1350 | Mzx.1550 |
| Coating Speed（m/min） | Max.120 | ||||
| Unwinding Roll Diameter（mm） | Max.800 | ||||
Rewinding Roll Diameter（mm） | Max.1200 | ||||
Related Products
-
Single-layer Coating Machine
This battery coating machine is ideal for lithium ion battery coating across both power and digital cell applications. As a premier battery coating machine manufacturer, we ensure this equipment delivers precise battery electrode coating for high-performance production.
-
Calendering and Slitting Integrated Machine
This battery calendering machine integrates automatic winding with high-speed roller cleaning, pushing production limits to 120m/min. By seamlessly combining calendering battery manufacturing and precision electrode slitting within a 1500mm width, it delivers the high-speed output global developers demand. This all-in-one electrode slitting machine ensures every battery electrode coating is processed with industrial-grade accuracy and efficiency.
-
Gap Coating and Calendering Machine
This battery calendering machine excels in gap production, supporting electrode widths up to 800mm with high-precision thickness accuracy of ±1.5μm. By streamlining the calendering battery manufacturing process, it ensures the uniform consistency required for high-quality battery electrode coating. This solution optimizes the transition between the battery coating machine stage and subsequent processing, delivering the reliability expected from a leading battery coating machine manufacturer.
