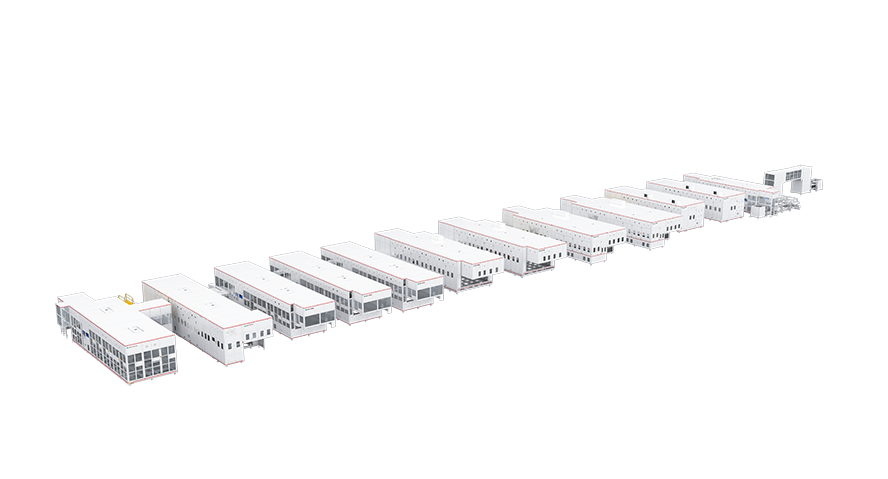

Sunken-type minimalist short-blade cell assembly line
Efficiency:
≤24PPM
High compatibility: suitable for mainstream cell production, capable of accommodating both short-blade and UC cells (650-250) production.
Compatible design: in the equipment changeover, the equipment is deeply designed to accommodate a range of cell production compatibility, enabling high-speed and efficient changeover during production.
Magnetic levitation: achieves the industry's first full-line application of magnetic levitation for cell handling on the assembly line, with a production efficiency of up to 24 PPM.
Comprehensive dust removal: a fully closed-loop dust removal system that eliminates dust in a 360° coverage.
Ultrasonic tab laser welding: custom ultrasonic welding heads, combined with patented welding joint technology, ensure that weld defects are controlled within 15%.
Dual-side high-efficiency laser welding for top cap: with CCD high-precision guidance, the dual-side welding fixtures can simultaneously complete the top cap welding on both sides.
Equipment Parameters
Main models | YLWA-600A |
|---|---|
Production capacity | 24PPM |
Overall size (mm) | 80000*15000*2700（L*W*H） |
Yield rate | ≥98% |
Standard specification battery (mm) | 16*560*118（T*W*H） |
Compatible range size(mm) | W：250-650 |
| MES | Support data communication function with MES syste |
Platform height | 950mm |
Machine type | 9 |
Number of machine | 13 |
Remark | Different processes will result in different types and quantities of machines |
