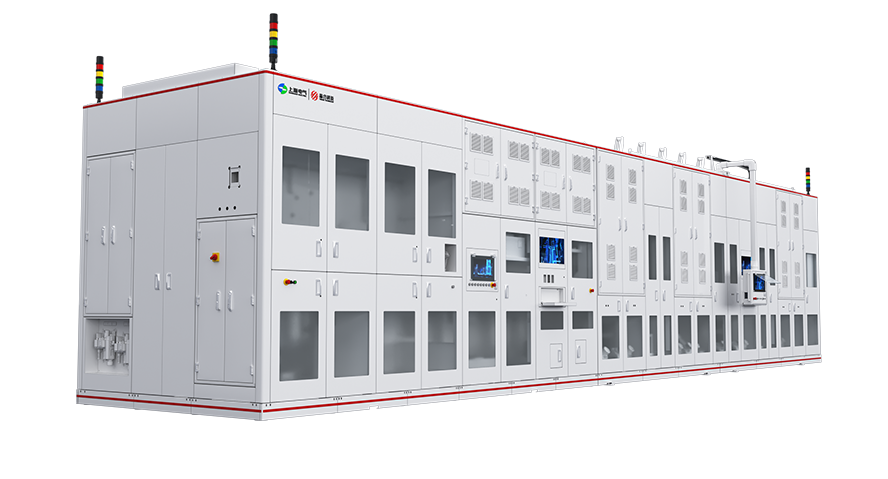

Ultra-high speed multi-station cutting and stacking machine
Specifications:
Compatible with three or four workstaions
Efficiency:
0.15s/pcs
Cathode and anode unwinding, automatic splicing, cutting, size inspection, surface defect inspection, NG electrode rejection, 3/4-station Z stacking machine, tapping, hot pressing, short-circuit test, and loading into trays, all integrated in a seamless lithium battery manufacturing equipment process.
Equipment Parameters
Main models | YMSA400T | YMSA600T |
|---|---|---|
Equipment size (mm) | 13500(L) *4500(W)*2800(H) | 15000(L) *5000(W)*2800(H) |
Cell height (mm) | 150~400 | 300~600 |
Cell width (mm) | 80~300 | 80~150 |
Cell thickness (mm) | 5~25 | 5~25 |
Efficiency | 0.1s/pcs | 0.15s/pcs |
Related Products
-
Notching and stacking machine (590 series)
Achieve unmatched precision in battery cell stacking with this high-speed system, featuring specialized CCD inspection after cutting for immediate, effective rejection of unqualified electrodes. Engineered for maximum productivity within a lithium battery stacking machine workflow, the 590 series utilizes a mature, compact 3 or 4-station Z-type layout that saves valuable floor space. As a premier battery stacking machine, it offers the perfect balance of advanced technology and space efficiency required by any modern battery electrode sheet stacking machine manufacturer.
-
Ultra-high speed multi-station cutting and stacking machine
2 cathode unwinding, 2 anode unwinding, laser cutting, CCD inspection after cutting, effectively eliminating unqualified electrodes
equipped with 4 Z-type stacking stations, high efficiency, mature technology integration, small space, high profitability, adapted to mass production lines.
-
Laser notching and stacking integrated machine
Optimizing lithium battery electrode forming, this specialized battery stacking machine synchronizes precise laser cutting with 4-station Z-type battery cell stacking. Advanced CCD inspection ensures only premium layers proceed through this battery manufacturing equipment, providing a stable foundation for any high quality battery stacking machine production line.
