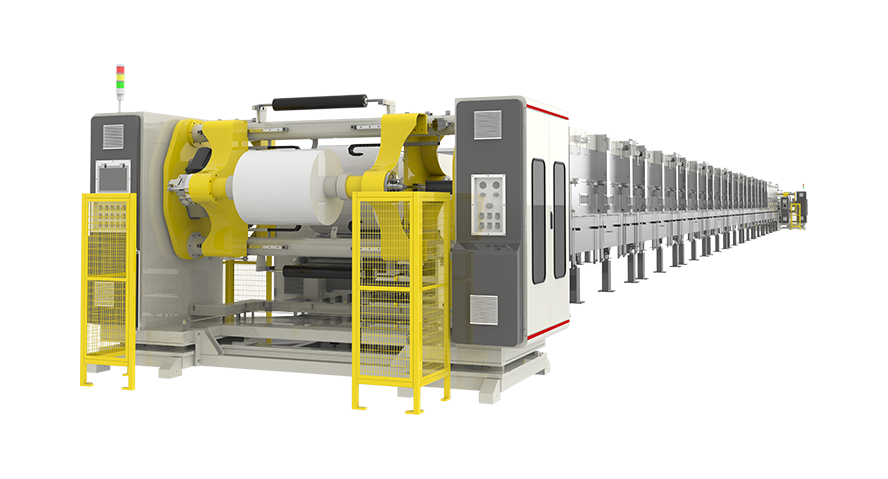

Single-laye Coating Machine
Coating Width :
Max.1350mm
Coating Speed :
Max.120m/min
The equipment is suitable for coating both power batteries and digital batteries. It is based on advanced technologies, including dual closed-loop control of speed and torque, flow field analysis, large-diameter unwinding tension and nip force closed-loop control, high-efficiency and energy-saving heat exchangers, high-speed gap coating, and roller-to-roller control, achieving world-leading performance.
With excellent performance indicators such as single-side surface density precision of ±1.2%, double-side surface density precision of ±1.0%, COV ≤ 0.3%, and CPK > 1.67, it enables a high-precision, highly controllable, and stable coating process.
Equipment Parameters
| Item | 750Series | 850Series | 1000Series | 1400Series | 1600Series |
|---|---|---|---|---|---|
Roller Width（mm） | 750 | 850 | 1000 | 1400 | 1600 |
| Coating Width（mm） | Max.680 | Max.700 | Max.800 | Max.120 | Max.1350 |
| Coating Speed（m/min） | Max.120 | ||||
| Unwinding Roll Diameter（mm） | Max.800 | ||||
Rewinding Roll Diameter（mm） | Max.1200 | ||||
Related Products
-
Double-layer Coating Machine
This battery coating machine ensures stable, continuous output throughout the lithium ion battery coating machine process. Designed for high-precision battery electrode coating, it provides an efficient, stable solution from a leading battery coating machine manufacturer to optimize large-scale production.
-
Double-layer Super-E Coating Machine
This battery coating machine redefines efficiency by merging an A/B side design with innovative lithium ion battery coating technology. Beyond mere stability, the system slashes overhead by shrinking factory footprints and labor needs, allowing this battery electrode coating solution to champion energy-saving production. As a top-tier battery coating machine manufacturer, we’ve engineered this unit to transform high-quality output into a sustainable competitive advantage.
-
Super S-Type Coater
The Super S-Type Coater evolves from the Super-E prototype, integrating core standardized units such as the Super-E A-side coating machine, unwinding &
rewinding units, oven, and traction unit, inheriting the Super-E’s exceptional thermal efficiency and energy-saving performance. It stands as a pinnacle of precision engineering from a leading battery coating machine manufacturer, delivering the reliability required for modern electrode production.
-
Calendering and Slitting Integrated Machine
This battery calendering machine integrates automatic winding with high-speed roller cleaning, pushing production limits to 120m/min. By seamlessly combining calendering battery manufacturing and precision electrode slitting within a 1500mm width, it delivers the high-speed output global developers demand. This all-in-one electrode slitting machine ensures every battery electrode coating is processed with industrial-grade accuracy and efficiency.
-
Gap Coating and Calendering Machine
This battery calendering machine excels in gap production, supporting electrode widths up to 800mm with high-precision thickness accuracy of ±1.5μm. By streamlining the calendering battery manufacturing process, it ensures the uniform consistency required for high-quality battery electrode coating. This solution optimizes the transition between the battery coating machine stage and subsequent processing, delivering the reliability expected from a leading battery coating machine manufacturer.
-
Slitting Machine
This high-speed electrode slitting machine supports roller widths up to 1600mm and speeds of 150m/min. Engineered for precision, it delivers a slitting accuracy of ±0.3mm and minimal burrs, ensuring a seamless transition from the battery coating machine stage. This robust battery slitting machine solution is designed for consistent electrode slitting in large-scale manufacturing.
