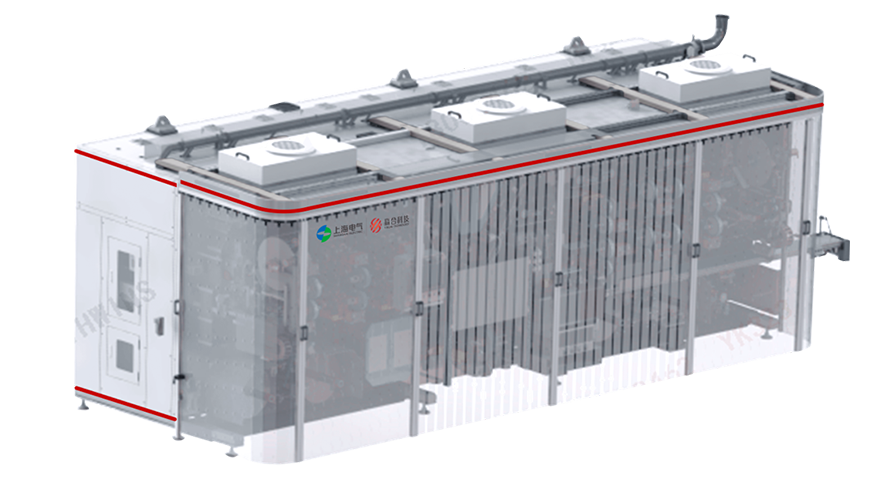

3C electrode-making integrated machine
Efficiency：
＞21PPM/min
Yield rate:
≥99.5%
This equipment is suitable for the fully automated winding of prismatic 3C lithium-ion batteries. It features CCD online detection of various data and closed-loop control. After the cell flattening and Hi-pot testing, the cells are unloaded from a conveyor belt.
Equipment Parameters
| Series/Item | 60Series | 160Series |
|---|---|---|
Cell height（mm） | 10-60 | 40-160 |
| Cell width（mm） | 8-30 | 30-110 |
| Cell thickness（mm） | 2-6 | 2-10 |
| Mechanical speed （m/min） | Constant linear speed ≥600mm/s | |
Winding mode | Outer packing by separator/electrode | |
| Efficiency(PPM/min） | ＞21PPM | |
| First-pass yield | 99.5% | |
| Alignment（mm） | ±0.3mm，CPK＞1.33 | |
| Tab margin （mm） | ±0.3mm，CPK＞1.33 | |
| defect detection | CCD detection + short circuit | |
| Optional configuration | Tab welding: Laser welding / ultrasonic welding / triple tab / no welding Taping: Anode 4, Cathode 6/ Anode 6, Cathode 8/ Anode 8, Cathode 10/ No taping Winding process: Central tab / triple tab / conventional process | |
