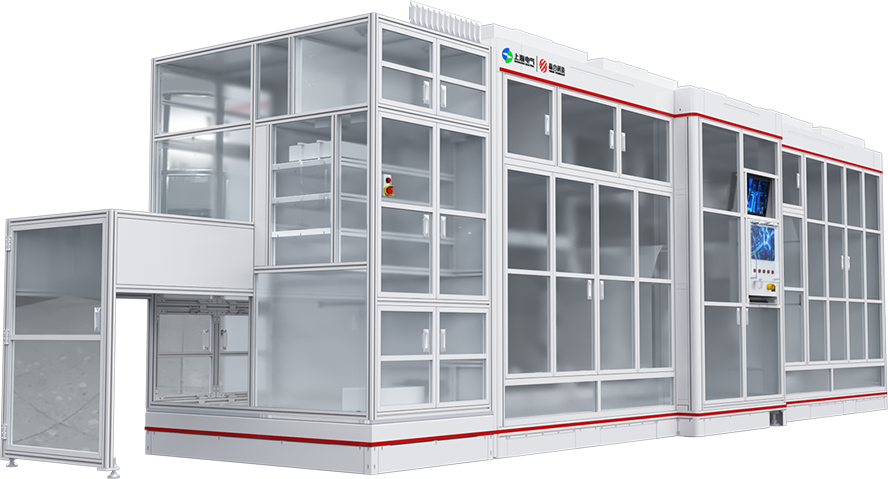

46 Series Laser Notching and Winding Integrated Machine
Efficiency：
24PPM
Qualification rate:
≥99.8%
This machine is cylindrical cell manufacturing equipment capable of 24-hour non-stop operation! The equipment is used for unwinding and deviation correction of cathode and anode sheets. Following this, High-speed laser notching is performed on the cathode/anode tabs， then CCD detects surface defects and measure related dimensions. After the electrode are loaded, they are wound together with the separator to form cylindrical cells. Subsequent processes include cutting, applying terminal adhesive tape, heat punching, Cell terminal molding, CCD appearance/diameter inspection, and CCD terminal tab inspection Finally, the cells are transferred via a conveyor belt to the ATC system for automatic tray loading.
Equipment Parameters
| Model | YHRCW-42/50-1 | |
|---|---|---|
Cell specification | Diameter(mm) | φ42-φ50 |
Height(mm) | 50-125 | |
Pore diameter(mm) | φ6.0 ~ φ8.0 | |
Outer packing form | Outer packing by separator | |
| Efficiency | 24PPM（4680） | |
| Qualification rate | ≥99.8% | |
Related Products
-
21700 High-speed Winding Machine
Operating at 40PPM, this battery winding machine excels in 24-hour cylindrical cell production. The automatic winding machine integrates ultrasonic welding and CCD detection for a ≥99.8% yield. It streamlines electrode loading and testing, ensuring a high-performance lithium ion battery winding machine workflow.
-
High-speed HEV fully automatic winding machine
Designed for the specific demands of HEV cells, this high speed winding machine balances rapid output with meticulous online overhang detection. It solves the challenge of high-volume, low-capacity cell production by maintaining a 99.5% pass rate at speeds exceeding 15 PPM. For those seeking a reliable li-ion battery winding machine, this system provides the closed-loop stability and integrated testing essential for advanced automotive energy lines.
-
3C electrode-making integrated machine
This advanced battery winding machine streamlines the fully automated production of prismatic 3C lithium-ion cells with integrated CCD online detection and closed-loop control. Delivering efficiency over 21 PPM, it provides the high-speed reliability essential for any professional lithium ion battery winding machine factory.
